EV Works Throttle Box, 0-5Kohm 2-wire resistive t
Click to enlarge
$82.50
Sold Out - Backorder Available
Enter qty and post code to calculate shipping:
Australia Post Express Satchel - $13.20
Air delivery Australia wide.

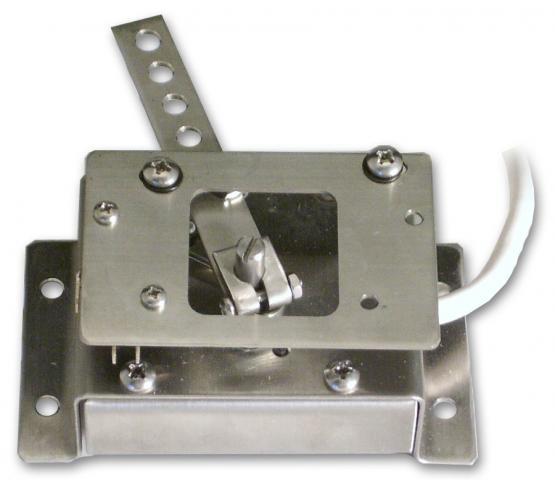

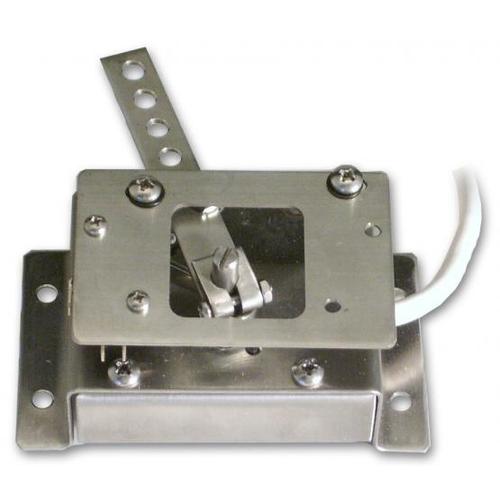

These throttle boxes are an economical substitute for Curtis PB-6 potboxes, having the same physical dimensions and high quality stainless steel construction. It is a 2-wire resistive type with 0-5Kohm potentiometer. If you are handy with a soldering iron they can be easily converted to 3-wire if required by your controller (though for 0-5V throttles we recommend our Hall Effect Throttle Box instead!) They also have a microswitch with Normally Open and Normally Closed contacts, useful for redundant safety (e.g switching your controller Enable pin or engaging the main contactor). Weight: 400 g
(CTL-EVW-TBX-5K)
| SKU | CTL-EVW-TBX-5K |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.080m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.001248000m3 |
