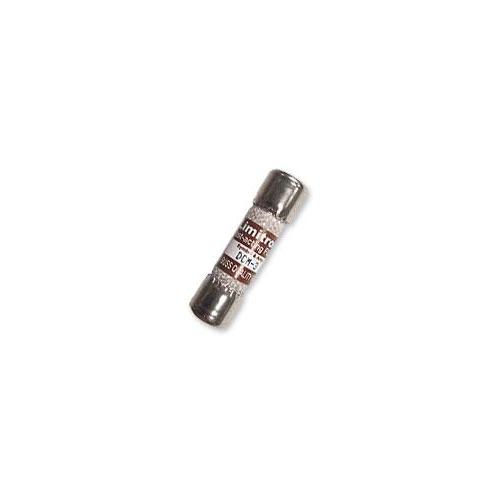

Bussmann DCM Midget Fuse - 5A 600VDC rated, fast
Click to enlarge
$12.65
In Stock
| Buy In Bulk & Save! | |
|---|---|
| Buy 0 to 9: | Pay $12.65 |
| Buy 10 or more: | Pay $11.55 |
Enter qty and post code to calculate shipping:
Australia Post Express Satchel - $13.20
Air delivery Australia wide.
These Bussmann \"Midget Fuses\" are the ideal solution for protecting the wiring to your lower power devices connected to the traction pack in your EV, such as your DC/DC converter, charger, BMS, etc. Few fuses on the market have a DC voltage rating high enough for use in electric vehicle traction circuits - don\'t get caught out with inappropriate safety devices! Bussmann DCM series: UL Listed up to 600VDC (and AC) Interrupting rating of 50,000A DC Dimensions are 38.1mm long x 10.3mm diameter Construction: Melamine tube with silver fuse element and nickel plated brass end-caps. Agency information: CE, UL Listed: STD 248-14, CSA Certified We also carry inexpensive fuse holders for these fuses. Installation should be as close as possible to where your wiring branches off the traction circuit, to maximise protection. See our circuits section for a graphical example. Weight: 50 g
(FUS-DCM005)
| SKU | FUS-DCM005 |
| Brand | BUSSMAN |
| Shipping Weight | 0.0100kg |
| Shipping Width | 0.040m |
| Shipping Height | 0.010m |
| Shipping Length | 0.010m |
| Shipping Cubic | 0.000004000m3 |
