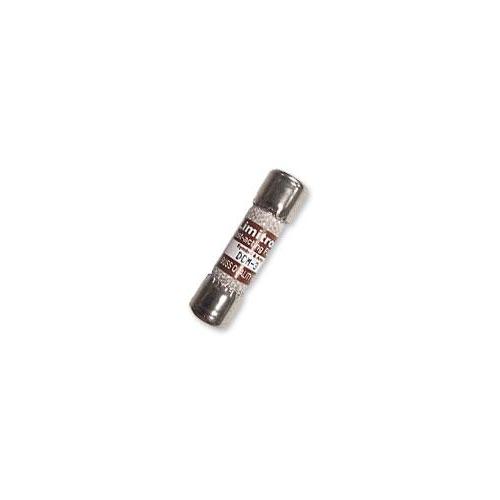

Bussmann DCM Midget Fuse - 20A 600VDC rated, fast

These Bussmann \"Midget Fuses\" are the ideal solution for protecting the wiring to your lower power devices connected to the traction pack in your EV, such as your DC/DC converter, charger, BMS, etc. Few fuses on the market have a DC voltage rating high enough for use in electric vehicle traction circuits - don\'t get caught out with inappropriate safety devices! Bussmann DCM series: UL Listed up to 600VDC (and AC) Interrupting rating of 50,000A DC Dimensions are 38.1mm long x 10.3mm diameter Construction: Melamine tube with silver fuse element and nickel plated brass end-caps. Agency information: CE, UL Listed: STD 248-14, CSA Certified We also carry inexpensive fuse holders for these fuses. Installation should be as close as possible to where your wiring branches off the traction circuit, to maximise protection. See our circuits section for a graphical example. Weight: 50 g
