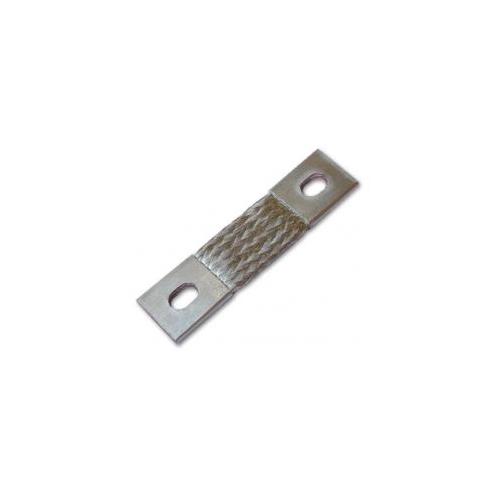

Braided Cell Interconnector 80-8

Due to shortcomings encountered with ThunderSky's own terminal connectors, we a designed a range of these great braided cell interconnectors, specifically for hooking up lithium battery packs in electric vehicles. They are made from tinned copper braid (50sqmm total) with crimped tinned copper end caps, ensuring a minimum resistance connection between battery terminals. They offer a little flex between cells to ensure a good connection even when adjacent cells are not perfectly aligned. The 80-8 size has a nominal pitch of 80mm with elongated 8mm holes, making them suitable for connecting M8 terminals between 76mm to 84mm. Quick reference guide: (WB = Winston batteries, SE = Sky Energy) Size: Side by side End to end 50-6 WB 40Ah, SE 40Ah, SE 60Ah SE 40Ah 60-6 WB 60Ah WB 40Ah, WB 60Ah, SE 60Ah 60-8 WB 90Ah, WB 100Ah, SE 130Ah WB 90Ah, WB 100Ah, SE 100Ah 70-8 WB 160Ah, SE 100Ah, SE 180Ah - 80-8 - WB 160Ah, SE 130Ah, SE 180Ah 90-8 WB 160Ah 55-12 WB 200Ah, 65-12 WB 400Ah, 1000Ah, Weight: 70 g Installation tips: We highly recommend cleaning the oxide off battery terminals thoroughly with a wire brush before installing cell interconnectors, since aluminium oxide in particular has quite high electrical resistance. Also make sure you always use spring washers under the bolt heads to prevent them loosening.
